SMB-C15Twoshaftsareplacedinparallel,towhichtwobalancedcocoon-shapedrotorsarefixedrespectively,andthe

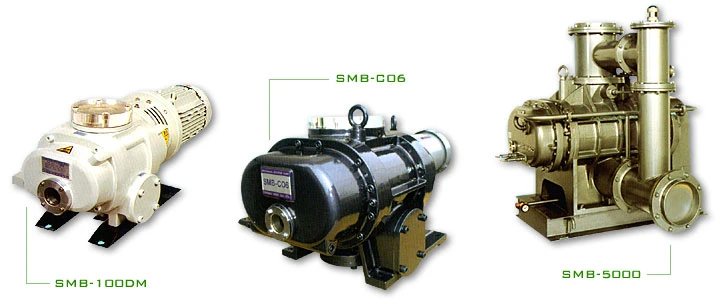

SMB-C15
Two shafts are placed in parallel, to which two balanced cocoon-shaped rotors are fixed respectively, and they are driven by a motor. As the rotor is rotated, the gas coming in through the suction port is trapped in the space between the casing and rotors, and then exhausted continuously through the exhaust port, producing vacuum in an efficient manner.
Two shafts are placed in parallel, to which two balanced cocoon-shaped rotors are fixed respectively, and they are driven by a motor. As the rotor is rotated, the gas coming in through the suction port is trapped in the space between the casing and rotors, and then exhausted continuously through the exhaust port, producing vacuum in an efficient manner.
|
型式 |
設計排氣速度 |
到達壓力PA |
電動機
KW |
油量
L |
吸入口徑 |
排氣
口徑 |
AXBXC
尺寸mm |
重量
Kg |
|
|
60HZ |
50HZ |
||||||||
|
SMB-200 |
190 |
160 |
0.2 |
1.5(4P) |
0.4 |
FV80 |
VF50 |
930X367X555 |
120 |
|
150 |
130 |
4.3X102 |
|||||||
|
SMB-C06 |
600 |
500 |
0.13 |
#4p#電動機#排氣#壓力#口徑#port#設計#機械助力式幫浦
